Sydney Harbour Bridge and its great steel arch over Sydney Harbour

Across the narrows of Sydney Harbour, a single steel arch gathers roadway, rail tracks and walkways into one broad span, forming Sydney Harbour Bridge between the central city and the North Shore of Australia’s largest metropolis. Completed and opened in 1932, under the direction of engineer John Job Crew Bradfield and the British firm Dorman Long of Middlesbrough, it gave Sydney a monumental crossing in the age of grand steel structures and fixed a new outline on the harbour skyline.

The steel arch that defines Sydney Harbour

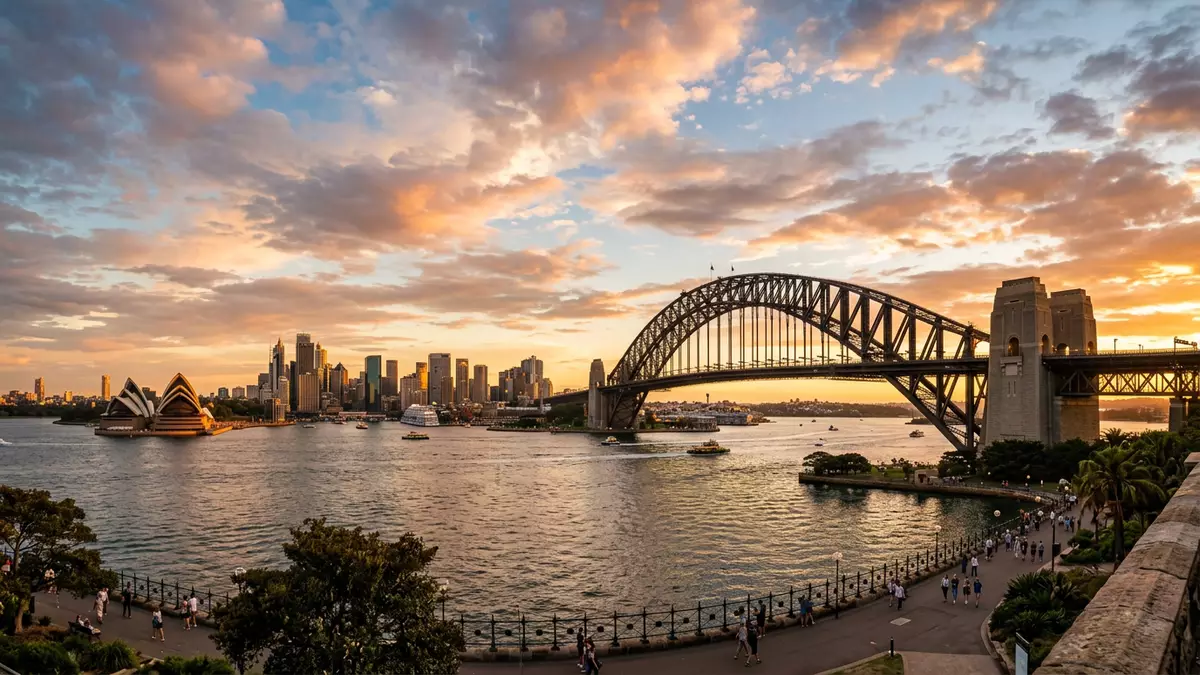

Seen from the water, Sydney Harbour Bridge is defined by its great steel arch rising above the harbour between Dawes Point on the southern shore and Milsons Point on the northern side. The form is that of a two-hinged steel arch with a hanging deck, a type closely related to earlier large steel arches such as New York’s Hell Gate Bridge, with the roadway and rail deck suspended beneath from a lattice of vertical hangers and diagonal bracing members.two-hinged steel arch The span of the arch itself reaches 503 m (1,651 ft) between its bearings, and the crown of the arch rises 134 m (440 ft) above mean sea level, a height that allows large harbour shipping to pass beneath with generous clearance.503 m arch span

Including the approach spans that lead in from both shores, the total length of Sydney Harbour Bridge reaches about 1,149 m (3,770 ft), while the deck carried beneath the arch is about 49 m (161 ft) wide, enough width to accommodate multiple traffic lanes, railway tracks and pedestrian space side by side.total length of bridge The steelwork of the bridge weighs tens of thousands of tonnes, with about 52,800 tonnes of structural steel recorded for the whole structure and more than 39,000 tonnes in the arch alone, figures that give a sense of the material intensity of large-scale early twentieth-century steel bridge engineering.52,800 tonnes of steel

Planning and construction in the early twentieth century

The idea of a fixed bridge across Sydney Harbour had circulated for generations, but progress accelerated in the early twentieth century when Dr John Job Crew Bradfield, a senior engineer in the New South Wales Department of Public Works, began presenting designs for a harbour crossing and associated metropolitan rail schemes. Bradfield was appointed chief engineer for Sydney Harbour Bridge and city transit in the 1910s, and in the early 1920s the New South Wales Government moved from concept to contract, awarding the building contract on 24 March 1924 to Dorman Long and Co Ltd of Middlesbrough, an English firm experienced in heavy steel bridge construction.contract awarded in March 1924

Construction on Sydney Harbour Bridge as a physical structure is recorded as beginning in July 1923, with ceremonial works at the southern end, and proceeding through foundation and approach works in the mid?1920s.construction began on 28 July 1923 The erection of the steel arch itself commenced in the second half of the decade, with documented dates in 1926 for the start of major steelwork and October 1928 for the point at which the arch ribs began to rise from each shore toward the centre.erection of the steelwork commenced in 1926 In August 1930, the two advancing halves of the arch met high above the harbour, joining at the crown after years of incremental erection and careful alignment, a milestone that left the arch complete and ready to carry its suspended deck.arches met at the centre in August 1930

The bridge was formally inaugurated on 19 March 1932, after around eight years of construction, with ceremonies led by the New South Wales government and attended by large crowds along the harbour foreshores.official opening on 19 March 1932 Bradfield remained a central figure throughout, supervising the project and lending his name to the bridge’s history, while Sir Ralph Freeman of Dorman Long undertook detailed design work, translating concept and outline parameters into the complex calculations and drawings required for such a large steel arch.Sir Ralph Freeman carried out detailed design

Structure, deck and granite pylons

Structurally, Sydney Harbour Bridge is arranged as a single main steel arch carrying a composite deck, backed by approach spans and flanked by four massive pylons. The arch ribs are built from large riveted steel plates and sections, forming a trussed profile that steps upward from each abutment tower to the crown, with the load carried at the bearings through huge pins and hinges founded in the rock of the harbour shores.bearing pins and hinges Below this arch, the deck is suspended by vertical hangers, and supports multiple transport modes, including road lanes, railway tracks and pedestrian paths.

At each end of the arch stand granite-clad pylons, rectangular towers that give visual weight to the bridge’s ends and anchor its silhouette against the skyline. These pylons are built as masonry shells around internal structures and have long been described as primarily aesthetic, providing a monumental frame at each shore rather than carrying the main arch loads, which pass instead through the steel bearings and abutments into bedrock.granite clad pylons at each end Between these pylons and across the arch, the bridge forms one continuous piece of infrastructure linking central Sydney with the North Shore, and its proportions, steel lattice and granite surfaces give it a recognisable industrial character aligned with early twentieth-century civil engineering.

Visiting Sydney Harbour Bridge: what travellers from Western Europe should know

• Sydney Harbour Bridge crosses the main harbour between Dawes Point, near The Rocks district in central Sydney, and Milsons Point on the North Shore, and is reached on foot, by road vehicles and by suburban trains using the routes that run across its deck.
• The bridge deck carries road lanes, railway tracks and a pedestrian walkway, and travellers on foot use an elevated path with long flights of steps and steady gradients alongside passing traffic and above the harbour water.
• The official language is English and the currency is the Australian dollar.
• Entry requirements depend on your nationality; UK travellers can check the FCDO travel advice at gov.uk/foreign-travel-advice, Irish travellers the Department of Foreign Affairs at ireland.ie.

Searching for Sydney Harbour Bridge on social platforms

These links open searches for Sydney Harbour Bridge on each platform.

Frequently asked questions about Sydney Harbour Bridge

Where is Sydney Harbour Bridge and what does it connect?

Sydney Harbour Bridge crosses the main harbour in Sydney, linking Dawes Point near the central business district with Milsons Point on the North Shore.

What should a visitor expect when crossing the bridge?

A visitor encounters a broad deck carrying road lanes, railway tracks and a pedestrian walkway suspended beneath the steel arch, with traffic and harbour views alongside.

What makes Sydney Harbour Bridge distinctive among large bridges?

Its single steel arch span of 503 m (1,651 ft), 134 m (440 ft) high above the harbour, and the combination of heavy steelwork with granite pylons give it a distinctive industrial profile.
